PVC Appliance Wire Multi Conductor Cable for Equipment Motor UL2587，ECHU UL2587 shield cable

Name: PVC Appliance Wire Multi Conductor Cable for Equipment Motor UL2587ECHU UL2587 shield cable
Brand: ECHU
Price: 0.155 USD

Quality PVC Appliance Wire Multi Conductor Cable for Equipment Motor UL2587，ECHU UL2587 shield cable wholesale

Brand Name : ECHU

Model Number : UL2587

Certification : UL

Place of Origin : China

MOQ : 300Meter

Price : USD0.155-USD1.368/M

Payment Terms : T/T, Western Union

Supply Ability : 10000KM/week

Delivery Time : 10day after receiving payment

Packaging Details : splint reel/ splint box

Type : Insulaton

Application : Appliance

Rated Voltage : 600V

Rated Temp : 90℃

Conductor Material : Copper or tinned copper

Conductor Type : stranded

Contact Now

Product Description

UL2587 Heat Resistant Flexible PVC Sheath 90ºC 600V VW-1 cUL
-Rated Voltage: 600V
-Rated Temperature: 90ºC
-Insulation Material: PVC
-Jacket Material: PVC
-Conductor: Tinned or Bare, Stranded or Solid Copper
-Optional: AL-Mylar, Copper Braided
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance, motor, automation machine, machine tool equipment, logistics transportation equipment, cranes, automatic elevators, lifting parking, measurement, detection and control, air conditioning systems, refrigeration equipment, office automation equipment and data processing systems, driving, etc.

PVC Appliance Wire Multi Conductor Cable for Equipment Motor UL2587，ECHU UL2587 shield cable

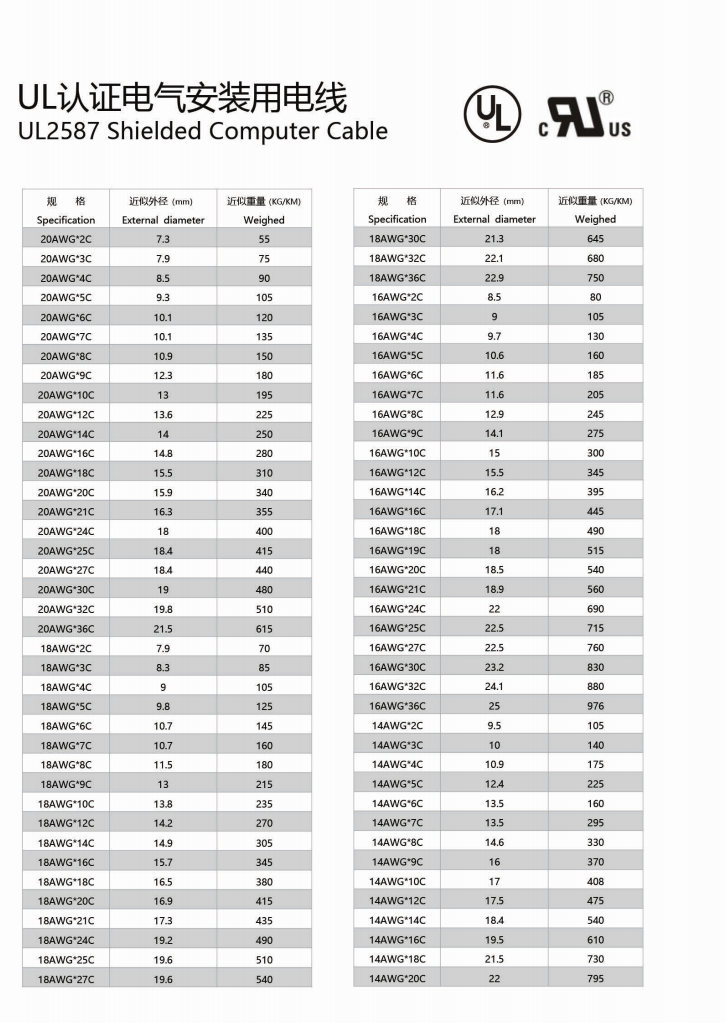

The catalog only includes some specifications. If other specifications are needed, they can be customized
